Description
With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to FPV pilots at an incredibly attractive price.
The Osprey Antenna features a transparent casing, unique hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you’re on, you are guaranteed to have a signal as clear and strong as it’s possible.
The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.
| Specifications： | |
|---|---|
| Product Name | FlyFishRC Osprey 5.8Ghz RHCP- MMCX Antenna 90mm |
| Gain | 2.82dBi |
| Frequency | 5.8GHz |
| V.S.W.R | ≤1.2:1 |
| Radiation Efficiency | 99% |
| Polarization | RHCP |
| Connector | Gold plated MMCX |

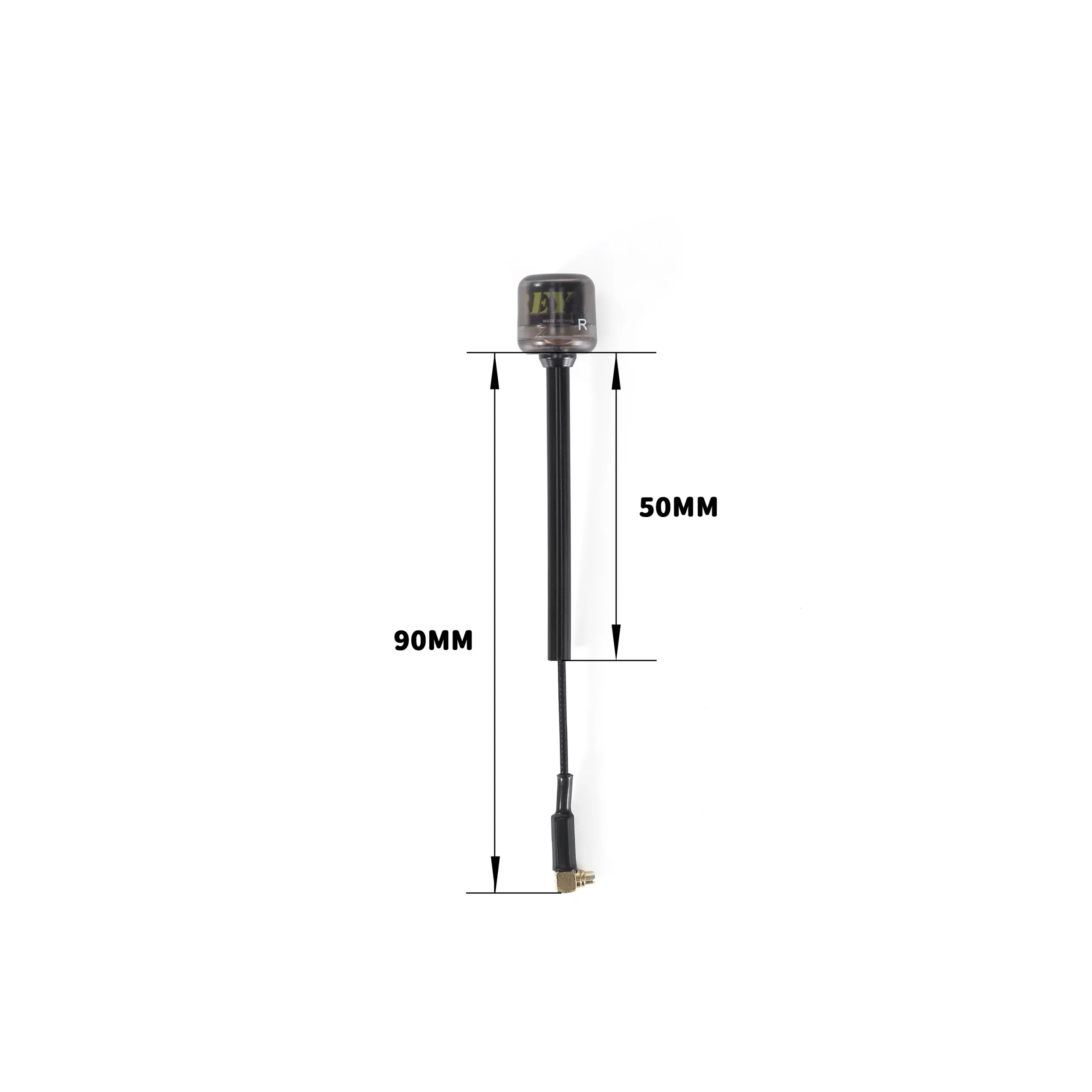

| Dimensions(head) | 14.1mm dia. X 14mm height. |
| Length | 104mm |
| Cable | Resilient RG141 coax. |
| Colors | Transparent Black |
| Weight | 3.77g |
Package Includes：
1x FlyFishRC Osprey 5.8Ghz RHCP- MMCX Antenna 90mm
