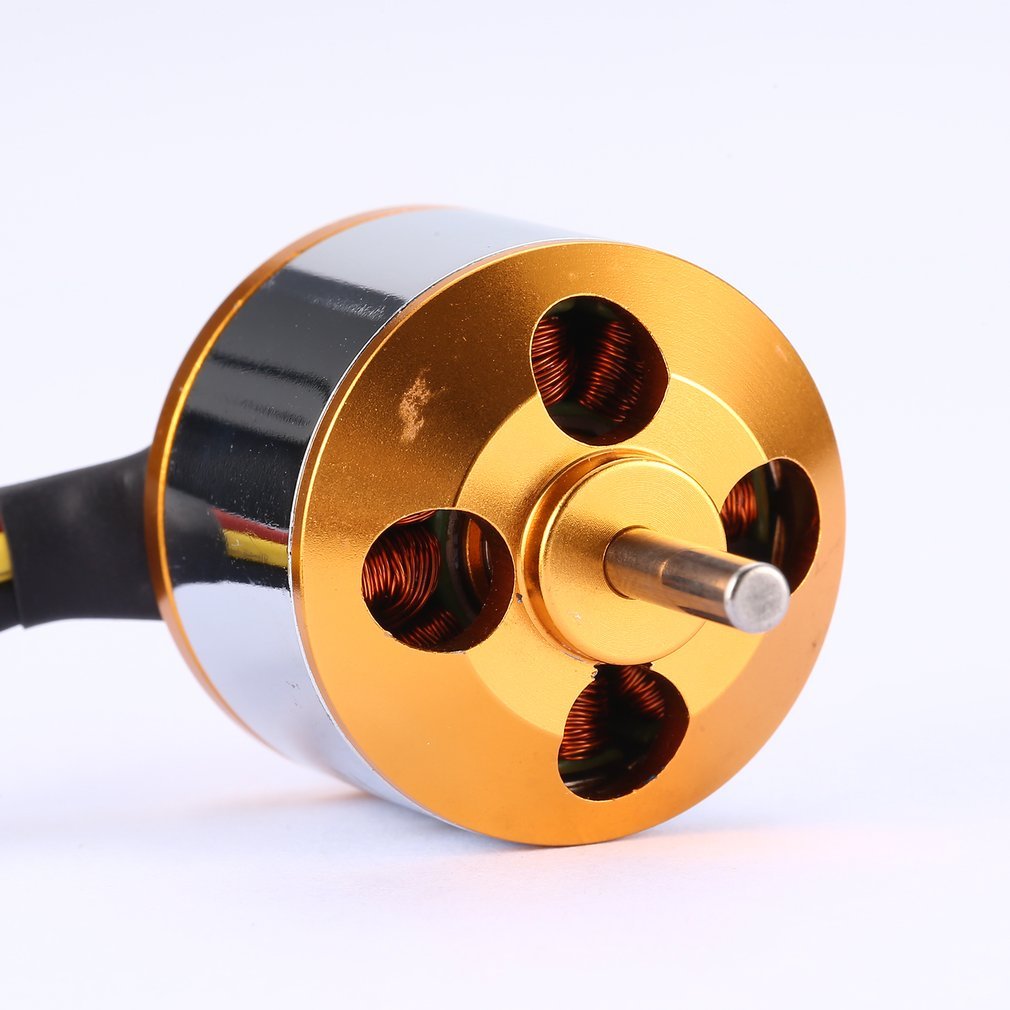

1400KV A2212/10T Brushless Motor With Bullet Connector For Drone & RC Plane

The 1400KV A2212/10T Brushless Motor with Bullet Connector is a common type of brushless motor used in drones and RC (Remote Control) planes. It’s known for its versatility, efficiency, and suitability for various applications. Below is a description and a list of typical features of the 1400KV A2212/10T Brushless Motor:

The 1400KV A2212/10T Brushless Motor with Bullet Connector is designed for use in small to medium-sized drones and RC planes. The “1400KV” in the name indicates the motor’s rotational speed per volt applied (1400 RPM per volt). This motor is part of the A2212 series and is a popular choice for a wide range of radio-controlled vehicles.

Typical Features of the A2212/10T Brushless Motor:

Brushless Design: These motors use brushless technology, which offers improved efficiency, reliability, and a longer lifespan compared to brushed motors.

KV Rating: The 1400KV rating means that for every volt applied to the motor, it will rotate at 1400 RPM. This rating helps users select compatible batteries and propellers for their specific application.

Bullet Connectors: The motor typically comes with bullet connectors pre-soldered to the motor leads. These connectors make it easy to connect and disconnect the motor from electronic speed controllers (ESCs) without soldering.

Versatility: With a 1400KV rating, this motor is suitable for a wide range of small to medium-sized drones, RC planes, and other radio-controlled vehicles. It is commonly used in quadcopters, fixed-wing planes, and multi-rotor drones.

Power and Thrust: The motor can generate a specific amount of thrust depending on the propeller size and battery voltage used. Users can choose different propellers to achieve the desired thrust and flight characteristics.

Efficiency: Brushless motors are known for their energy efficiency, resulting in longer flight times compared to brushed motors.

Low Maintenance: Brushless motors require minimal maintenance since they do not have brushes that need replacement.

Cooling Design: Many brushless motors, including those in the A2212 series, have vented and finned designs that help dissipate heat during operation, preventing overheating.

Mounting Holes: The motor typically has mounting holes compatible with standard motor mounts used in drones and RC planes.

Compatibility: This motor is compatible with a variety of electronic speed controllers (ESCs) and can be used with various flight control systems.

Weight: The motor is lightweight, which is crucial for keeping the overall weight of the drone or RC plane within acceptable limits for optimal flight performance.

Durable Construction: These motors are designed to withstand the vibrations and stresses associated with drone and RC plane flight.

Brand Name: SKY RC
Item Name: Brushless Motor
Model: A2212/10T
Dimension: 27.8*27mm
Shaft diameter: 3.17mm
Current Capacity: 16A
Voltage Capacity: 11.1v
Number of Cell: 2-3s Li-Po
Weight: 65g
KV: 1400
Color: golden
Suitable for the propeller size: 8045
Recommended ESC: 30A

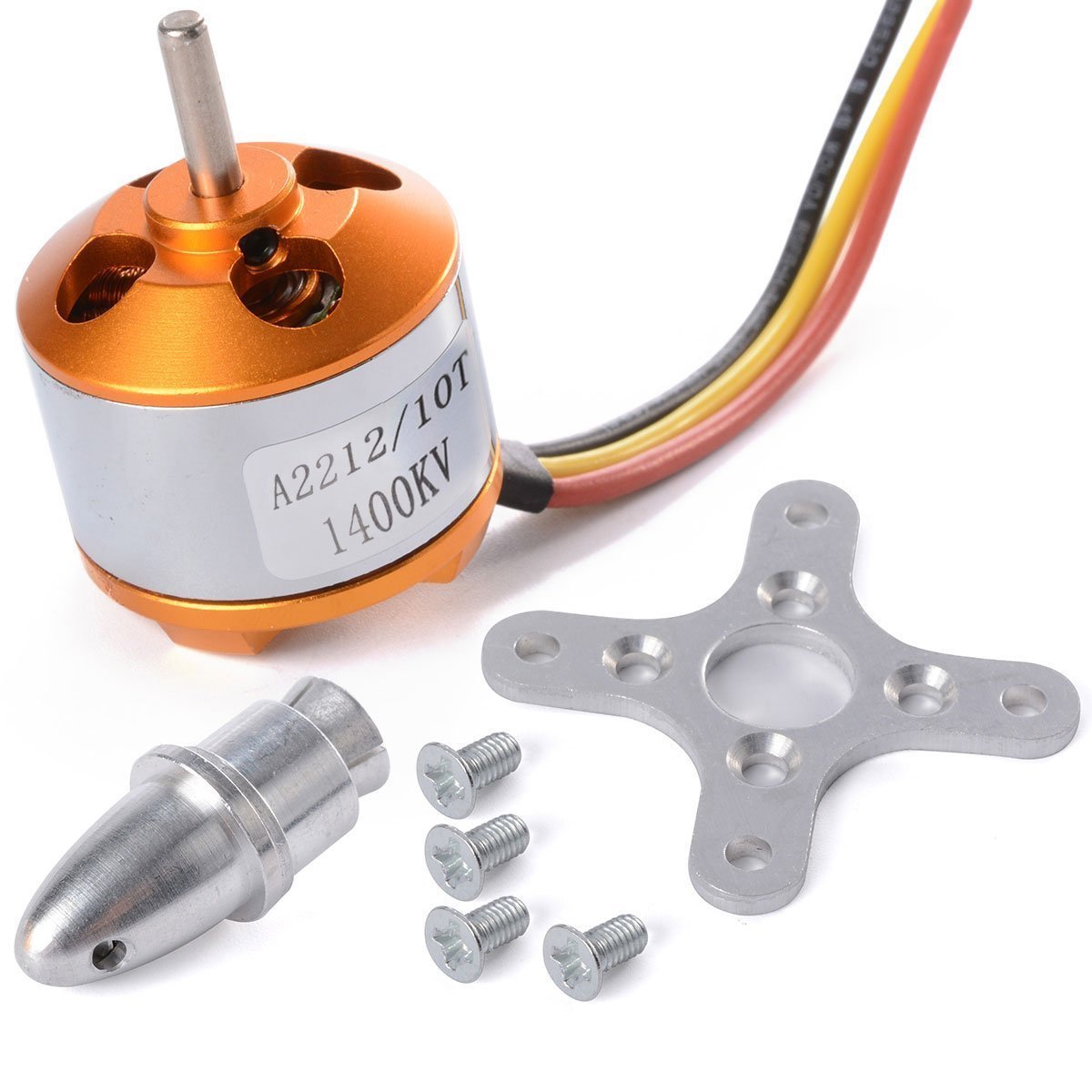

Package Included:
1× 1400KV A2212 Brushless Motor
1× motor mount
1× bullet propeller adapter
4× screw
