The Tower Pro SG90S is a micro servo motor, an upgraded version of the SG90 with metal gears. It is widely used in various RC (radio-controlled) applications, robotics, and other projects where precise control of small mechanical movements is required. Here’s a description and its features:
The Tower Pro SG90S is a compact and lightweight servo motor designed for precise control of small mechanical movements. It is known for its reliability and durability, making it suitable for a wide range of applications, especially those that require higher strength and resilience compared to nylon gear servos.
Features:
Micro Size: The SG90S is a micro-sized servo, weighing only 9 grams. Its compact form factor makes it suitable for applications where space is limited.
Metal Gears: One of the standout features of the SG90S is its metal gears, which provide increased strength and durability compared to nylon gears. This makes it suitable for applications that require higher torque and resistance to wear and tear.
Operating Angle: The SG90S servo has an operating angle of approximately 180 degrees, allowing it to rotate between 0 degrees and 180 degrees, providing a wide range of motion.
Torque: The servo is capable of delivering a moderate amount of torque, which varies depending on the voltage supplied but is typically around 2.5 kg/cm at 4.8V. This increased torque makes it suitable for applications requiring more strength.
Operating Voltage: The SG90S servo is designed to operate within a voltage range of 4.8V to 6V, making it compatible with common power sources used in RC and electronics projects.

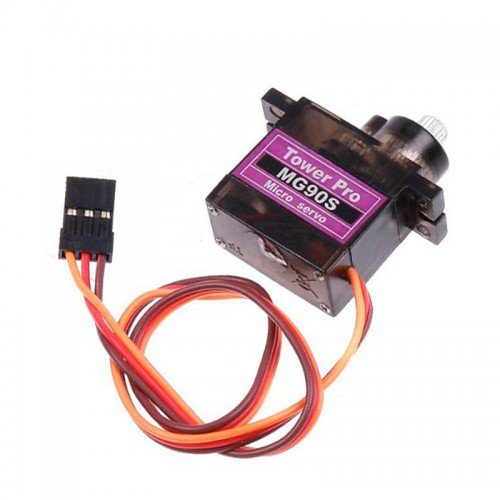

Control Interface: Like the SG90, the SG90S is a PWM (Pulse Width Modulation) servo, which means it is controlled by sending PWM signals to determine its position. The servo has three wires: power (VCC), ground (GND), and control (signal). You can control it with a microcontroller, Arduino, or other PWM signal sources.
Built-in Potentiometer: The servo contains a potentiometer for feedback, helping it maintain the desired position accurately.
Fast Response Time: The SG90S servo has a relatively fast response time, making it suitable for applications that require quick and precise movements.
Wide Range of Applications: This servo motor is commonly used in RC airplanes, cars, boats, helicopters, as well as in robotics, animatronics, and various DIY projects where increased strength and metal gears are preferred.
Affordability: Despite its metal gears and improved performance, the SG90S remains relatively affordable, providing a cost-effective solution for many hobbyist and DIY applications.
Brand: Tower Pro
Item Name: SG90S
Servo Type: Analogue Servo
Traveling: 180°(max)
Connector Wire Length: 25cm DuPont
Dimension: 23 × 12.2 x 29mm
weight: 9g
Operation Voltage: 3.0-6.0Volts
Stall Torque: 1.8kg/cm 4.8V
Temperature range: -30℃~60℃
Gear Type: Nylon+Metal Gear
Application: For Drone, RC Plane, RC Car, RC Robot, RC Boat, etc.
Features:
High quality and high cost performance.
Nylon+Metal Gear.
245mm connector wire.
Large stall torque of 1.8Kg.
Small size and light weight.
With 3 sets of servo horns and fittings.
Package Included:
1 x 9g Micro SG90S 180° Nylon+Metal Gear Servo Motor

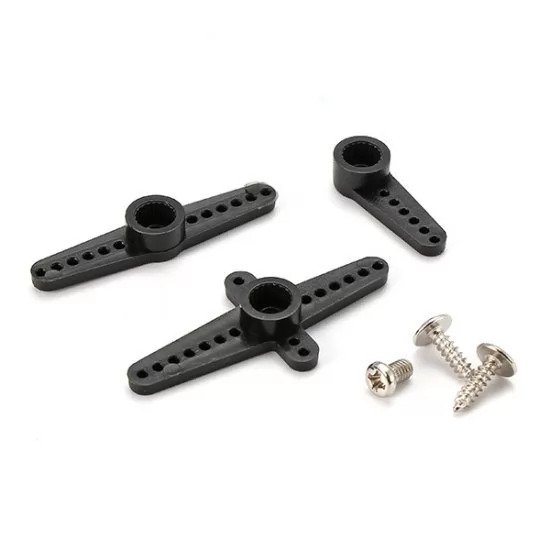

3 x Servo Arm Set
3 x Screw
| Specification | |
|---|---|
| Model | SG90 |
| Weight(gm) | 9 |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 0.10sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.2 |
| Stall Torque @6.6V (Kg-Cm) | 1.6 |
| Operating Temperature (°C) | -30 to 60 |
| Dead Band Width ( μs) | 7 |
| Gear Type | Glass Fiber |
| Rotational Degree | 180º |
| Servo Plug | JR |
| Cable Length (cm) | 25 |
| Length (mm) | 22.8 |
| Width (mm) | 12.6 |
| Height (mm) | 34.5 |
| Shipment Weight | 0.014 kg |
| Shipment Dimensions | 8 × 6 × 4 cm |
