$46.99 for a 60A ESC?
That’s ridiculous
That’s ridiculous
I know right? With only $46.99, you will get a powerful 60A 4-in-1 ESC, built with aluminum alloy heat sink + TVS protective diode + high-quality SMD filtering capacitors + external 1000uF low ESR capacitor, everything is for durable build and smooth flight.
All of that for only $46.99! Top-shelf spec at a crazy low price, what are you waiting for?
ESC upgraded to 60A with heat sink.
The PCB design has been refined, with copper thickness increased from 2 to 3 ounces and enhanced MOSFET specifications. Continuous current now reaches 240A across all channels, peaking at 320A for 10 seconds. An added aluminum alloy heat sink ensures efficient MOSFET heat dissipation for stable
ESC output. It delivers a genuine 60A output, primed for your baddest high-powered 6S motors.
TVS Protective Diode + 20 Onboard Filtering Capacitors + 1000uF High-Capacity Electrolytic Capacitor = Upgraded ESC Protection
We’ve included a TVS diode that effectively absorbs voltage spikes during power-up and crash events. The board features 20 high-quality SMD filtering and energy storage capacitors. These, along with the standard 1000uF high-frequency, low-ESR electrolytic capacitor, effectively filter
out signal interference from the power supply to the flight controller’s gyroscope, ensuring smoother flight performance.
Specifications

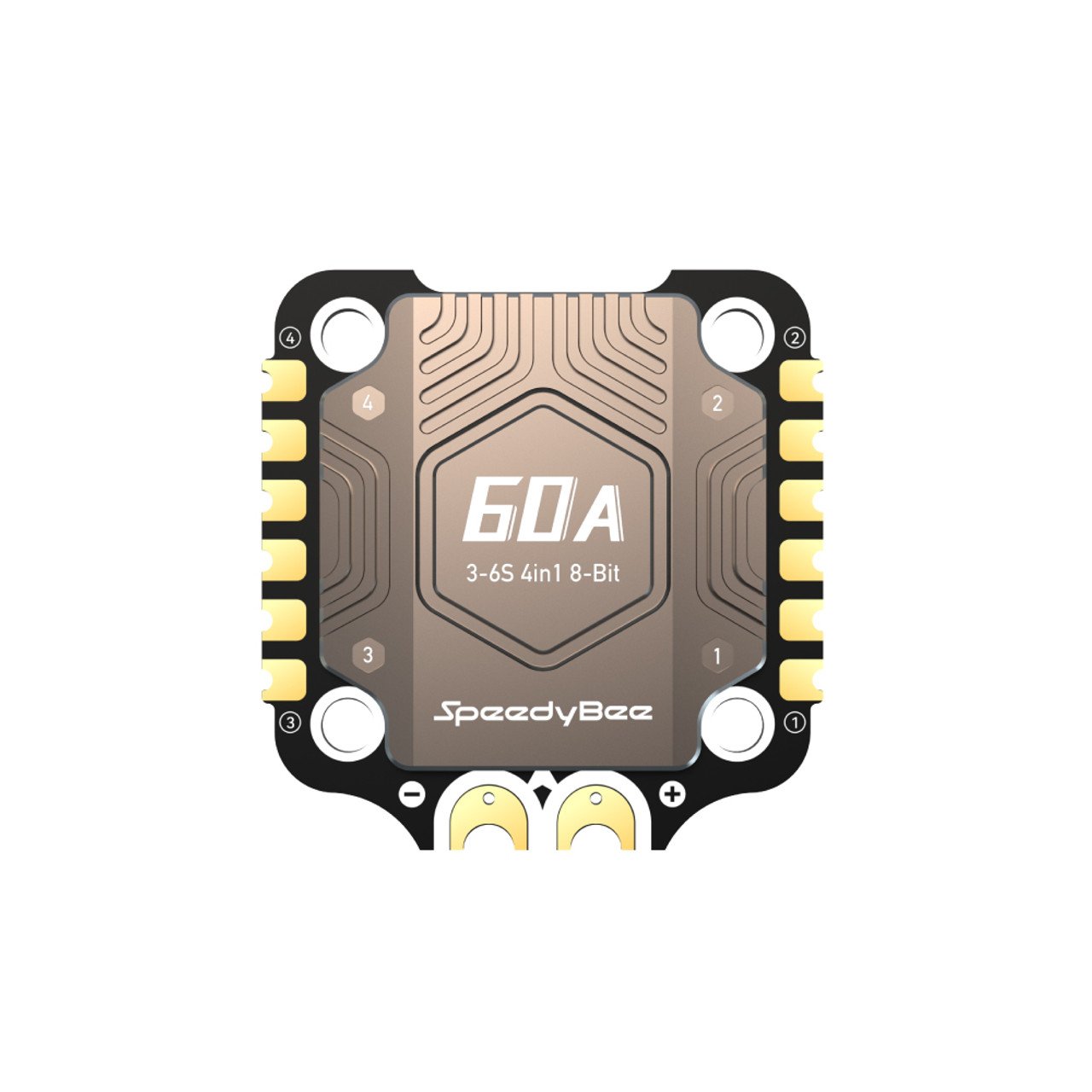

| Product Name | SpeedyBee BLS 60A 30×30 4-in-1 ESC |
| Firmware | BLHeli_S J-H-40 |
| PC Configurator Download Link | https://esc-configurator.com/ |
| Continuous Current | 60A * 4 |
| Burst Current | 80A(10 sec) |
| TVS Protective diode | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=400 Offset=0) |
| ESC Telemetry | Not supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 45.6(L) * 44(W) *8mm(H) |
| Weight | 23.5g |
