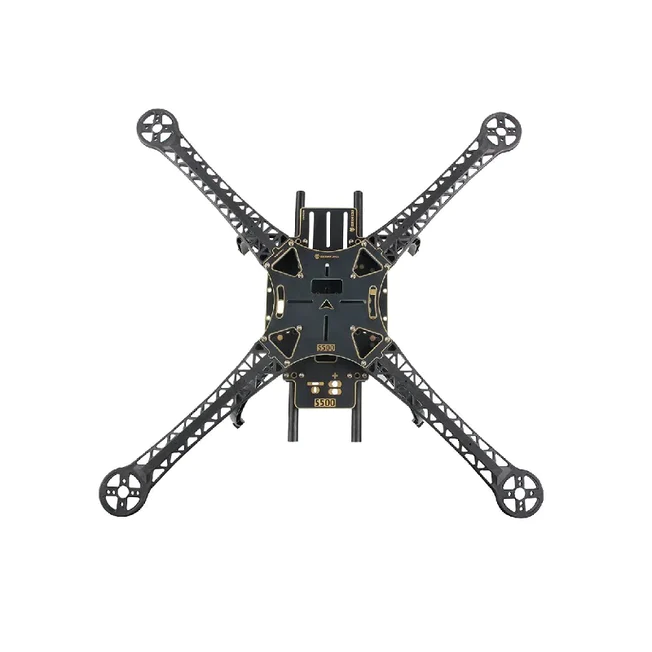

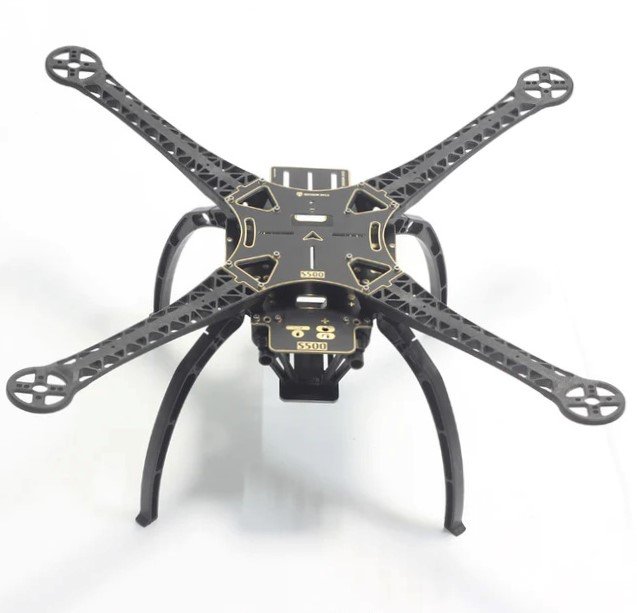

S500 Multi Rotor Air PCB Frame with Plastic Landing Gear

The S500 Multi Rotor Air PCB Frame with Plastic Landing Gear is a type of quadcopter frame kit designed for building multi-rotor drones, typically quadcopters or quadrotors. This frame kit offers a sturdy structure for assembling your drone and includes features that cater to stability, ease of assembly, and customization. Please note that specifications and features can vary slightly depending on the manufacturer, so it’s a good practice to refer to the specific product documentation or listing for precise details. Here are some common features and a general description of such a frame kit:

The S500 Multi Rotor Air PCB Frame with Plastic Landing Gear is a quadcopter frame kit known for its versatility and durability. It’s designed to accommodate various components necessary for building a multi-rotor drone.

Features:

Material: The frame is typically constructed from lightweight and durable materials such as glass fiber or PCB (Printed Circuit Board) material, which provides strength without excessive weight.

Quadcopter Configuration: The frame is designed to support a quadcopter configuration, which includes four arms and four motors, allowing for stability and maneuverability.

Landing Gear: The inclusion of plastic landing gear provides support for safe takeoffs and landings. It helps protect the quadcopter’s components and camera equipment during ground operations.

Mounting Holes: The frame typically includes pre-drilled and threaded mounting holes for attaching various components, such as motors, electronic speed controllers (ESCs), flight controllers, and battery holders. These holes are strategically placed to ensure a balanced and symmetrical configuration.

Size and Dimensions: The size and dimensions of the frame determine the overall size of the quadcopter. The S500 frame typically falls into the 450mm to 500mm size range, which is suitable for a wide range of applications, including aerial photography, FPV (First-Person View) racing, and general-purpose drone flying.

Payload Capacity: The frame is designed to handle a specific payload capacity, which defines the maximum weight the quadcopter can carry. This is important for accommodating cameras, gimbals, or other accessories.

Motor Mounts: It includes motor mounts or arms where you can securely attach the brushless motors. These arms are often color-coded to help with orientation during assembly.

Battery Compartment: Some frame kits feature a designated area for mounting the battery, helping to centralize weight distribution and improve flight stability.

FPV Equipment: There may be provisions for mounting FPV equipment, such as cameras, video transmitters, and antennas, to support FPV flying.

Easy Assembly: The frame kit is typically designed for easy assembly, with clear instructions and all necessary hardware included.

Customization: Users can often customize the frame with additional accessories or components, such as LED lights, GPS modules, or telemetry systems.

Compatibility: The frame is designed to be compatible with commonly used flight controllers, ESCs, and other drone components, making it easier to source and replace parts.

The S500 Multi Rotor Air PCB Frame with Plastic Landing Gear is a popular choice among drone enthusiasts and hobbyists due to its balance between size, durability, and versatility. It can serve as a solid foundation for building various types of quadcopters for different purposes.

More Features :
Made by advanced engineering material, super strong & smooth
Easy to assemble and disassemble.
The frame is tough and durable.
The main glass fiber frame has good strength.
The arm equips support ridges for better and faster forward flight.
Features pre-threaded brass sleeves.
Large mounting tabs for camera mounting.
In-built power distribution board.
Model: S500.
Frame Weight: 405gm
Wheelbase: 500 mm
Motor Mounting Hole Dia.: 3 mm
Landing Gear Material: ABS
Arm Size: 220 x 40 mm.
Landing Gear Length: 200mm

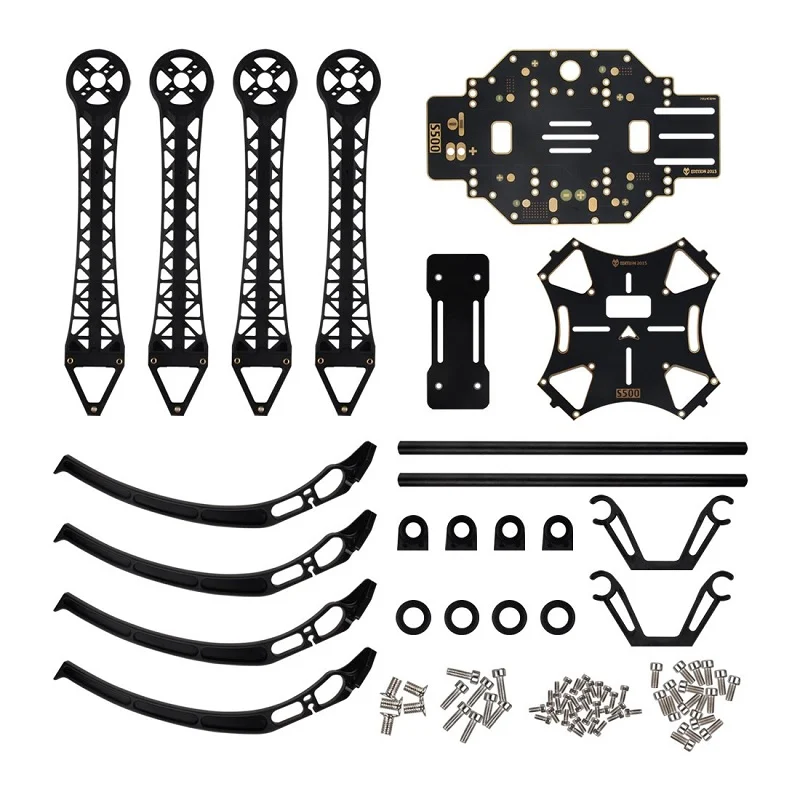

Package Included :
1× S500 quadcopter Frame(Top and Bottom) with Integrated PCB.
4× S500 arm
1× Plastic Landing Gear for Quadcopter
2× Special Pipes.
4× Pipe Supports.
1× Screw Accessories set. (Allen Head)
1× A manual.
