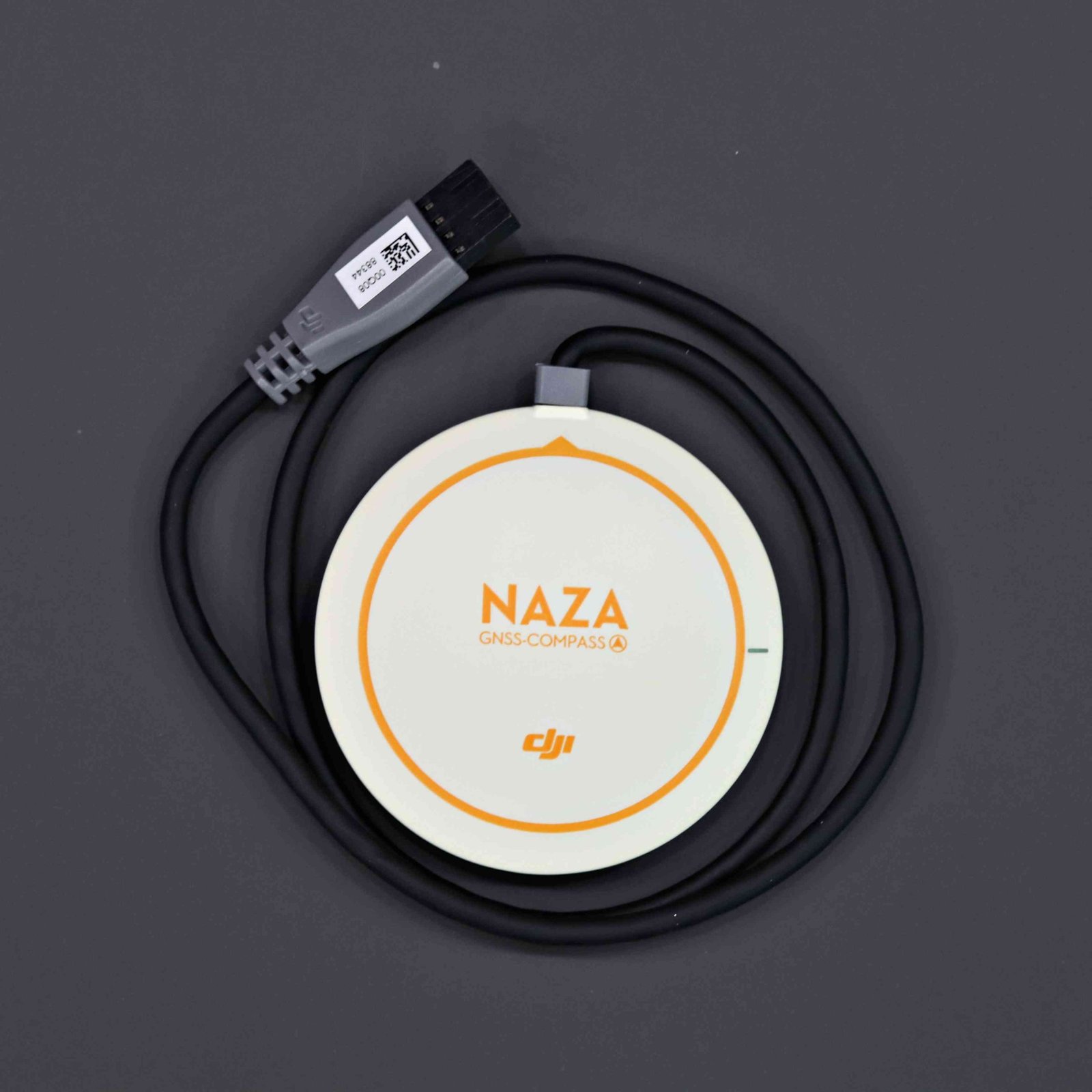

DJI NAZA M Lite GPS Module For Drone (Original)

The DJI Naza-M Lite GPS Module is designed to work in conjunction with the Naza-M Lite Flight Controller. It enhances the capabilities of the flight controller by adding GPS functionality, enabling features like autonomous flight modes, return-to-home (RTH), and position hold. This GPS module is particularly useful for drone pilots looking to achieve precise positioning, navigation, and automated flight tasks.

Key Features:

GPS Positioning: The GPS module provides accurate global positioning data, allowing your drone to determine its location with high precision. This data is used for various flight modes and navigation.

RTH (Return-to-Home): With the GPS module, your drone can be programmed to automatically return to its takeoff point in the event of signal loss, low battery, or a manual RTH command. This feature enhances safety and helps prevent flyaways.

Position Hold: The GPS allows your drone to hold a specific position in the air, even in the presence of external disturbances like wind. This is valuable for capturing stable aerial footage and precise hovering.

Waypoint Navigation: The Naza-M Lite system, when equipped with the GPS module, supports waypoint-based navigation. You can program a series of GPS coordinates for your drone to follow autonomously.

Geofencing: The GPS module can be used to create virtual boundaries or geofences, ensuring that your drone does not fly into restricted areas or beyond predefined limits.

High Accuracy: The GPS module is designed for high accuracy, providing reliable GPS positioning data for safe and precise flight.

Fast Satellite Acquisition: It can quickly acquire satellite signals, allowing for rapid GPS lock and accurate positioning during flight.

LED Status Indicator: The GPS module typically features an LED status indicator that provides information about its GPS lock status and connection to the flight controller.

Compatibility: The GPS module is specifically designed to work with the Naza-M Lite Flight Controller, ensuring seamless integration and reliable performance.

Plug-and-Play Installation: Installing the GPS module is usually straightforward, with plug-and-play connectors, minimizing the complexity of setup.

DJI Quality: The DJI brand is known for its quality and reliability, offering a trusted solution for GPS functionality.

Features:

GPS Module Available/Accurate Position Hold
The plug and play GPS module will greatly enhance the performance for Aerial Photography with accurate Position Hold, Return-To-Home and Intelligent Orientation Control functionalities. With the GPS Module, the multi-rotor will have position and altitude locked accurately even in windy conditions. Hovering accuracy is approximately 2.5m horizontal and 0.8m vertical.

Intelligent Orientation Control (IOC)

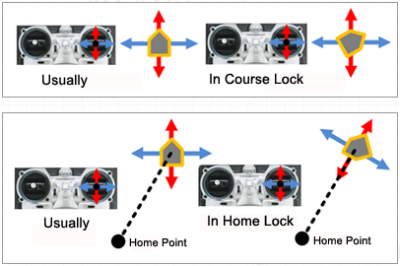

Usually, the forward direction of a flying multi-rotor is the same as the nose direction. By using Intelligent Orientation Control (IOC), wherever the nose points, the forward direction has nothing to do with nose direction:
In course lock flying, the forward direction is the same as a recorded nose direction. See the following figures(Mode 1)： In home lock flying, the forward direction is the same as the direction from home point to multi-rotor.See the following figures (Mode 2)：

Failsafe Mode
If your transmitter supports failsafe, then you can set failsafe through port-U. Naza controller has built-in auto level failsafe function, which means when the communication between MC and the transmitter is disconnected, the outputs of all command sticks from controller will go to center position. If the GPS module is used, you can also set RTH on failsafe. If your transmitter has only 4 channels, then MC will work in Atti. Mode by default without the failsafe function.

Low Voltage Protection
In order to prevent your multi-rotor from crashing or other harmful consequences caused by low battery voltage, we have designed two levels of low voltage protection. You can choose not to use this, however we strongly recommend you to enable the protection. Both levels of protection have LED warning as default. The first level will blink the red light continuously; the second level will blink red light continuously and the multi-rotor will descend and land. In manual mode when low voltage protection is triggered the LED warning will be active only.

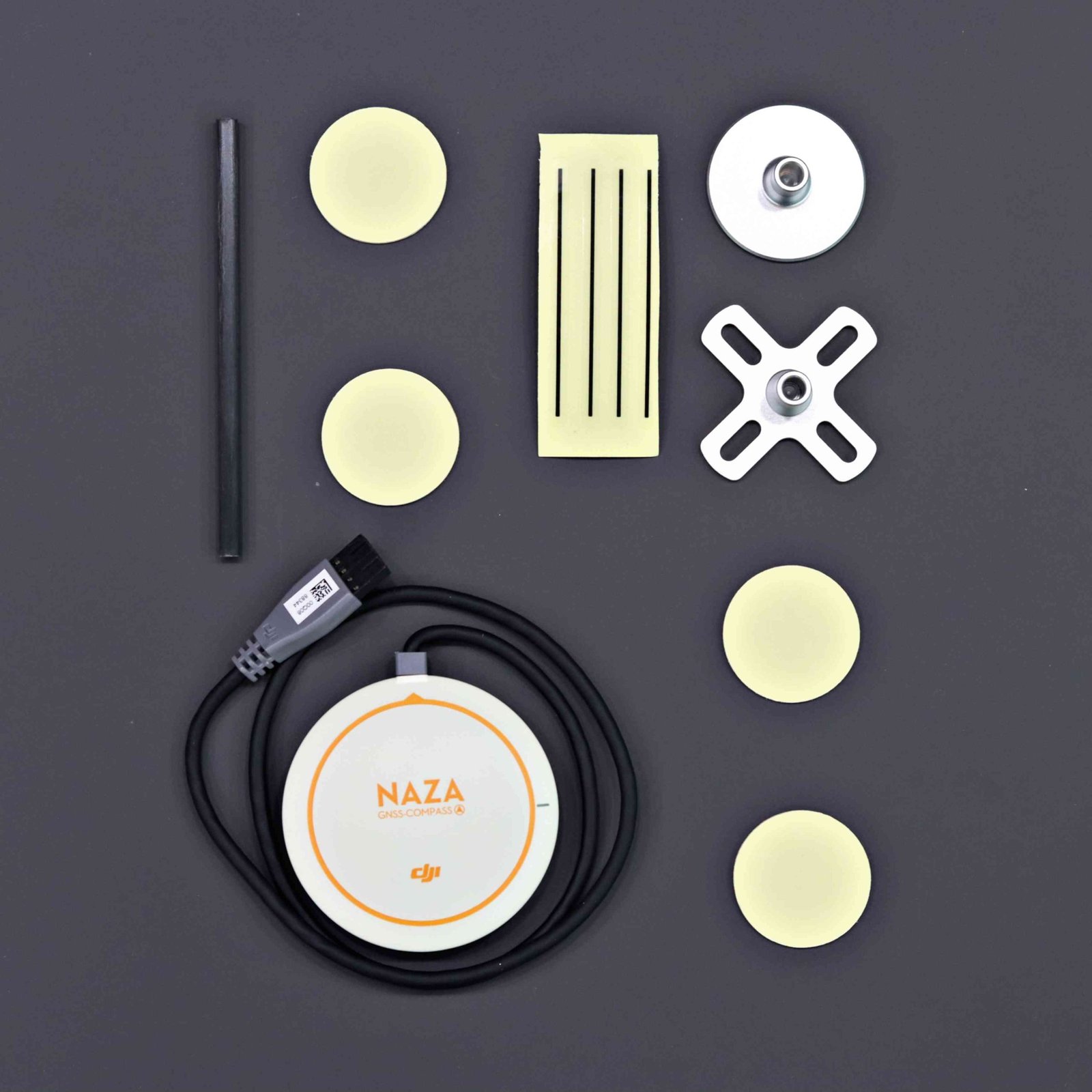

Package Included:
1× DJI NAZA M Lite GPS Module (Original)
1× GPS Module Stand
